Piezoresistive transducer |
|
![](images/pro5.jpg) |

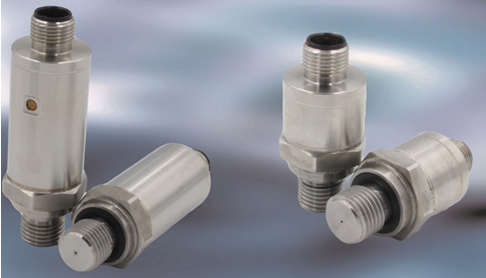

Poseidon series high voltage transmitter
Poseidon series sensors are based on thin film strain gauge technology and stainless steel film design, and the signal is regulated by a special circuit. The sensor can be used to develop high pressure transmitter series for industrial application. The Poseidon series is compatible with any fluid medium. Application specific circuit and protection circuit are integrated in the transmitter to provide plug and play solution.
Features:
High sealing, all welded stainless steel structure, no internal sealing
High pressure up to 1200bar high compatibility
EMC certification
Over voltage, reverse polarity and output short circuit protection
Application scope:
High pressure hydraulic system、heavy equipment / machinery、high pressure common rail、steam turbine |
|
|

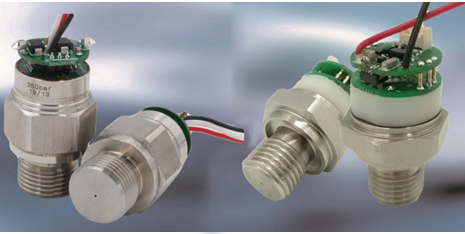

Cerberus series pressure transmitter
Cerberus pressure transmitter module is designed as a semi-finished product to provide pressure transmitter manufacturers with a solution to easily obtain the finished transmitter. This series adopts sputtered thin film technology, digital signal regulation and amplification, suitable for various industrial standard output. The integrated stainless steel welding structure can withstand the pressure up to 6400bar and eliminate the risk of internal seal failure. Users only need to add the shell and electrical connector.
Features:
Sputtering thin film technology
High safety factor, up to 4 times overload pressure and 20 times burst pressure
Pressure range: 2 ~ 2000 bar, 4-20 mA, 0-10V, 0-5V, proportional voltage, I2C, RS-485 output (customizable output)
The working temperature range is - 40 to 150 ° C. various pressure threaded joints are available |
![](images/pro51.jpg)
Cerberus 系列压力变送器 |
|
|
![](images/pro52.jpg) |

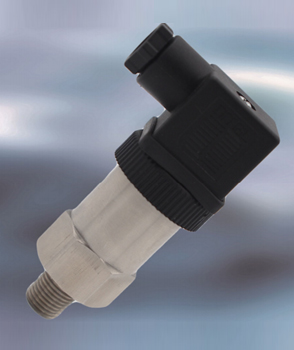

Aries series
Aries series transmitter adopts ceramic pressure core, which has the best cost performance.
Features:
Ceramic pressure core
Best value for money
The pressure range is 0.25 ~ 100 bar
Absolute or gauge pressure
4-20 mA, 0-10V, 0-5V, proportional voltage, I2C, RS-485 output
The operating temperature range is - 40 to 125 ℃ ° C
Compatible with various media
EMC certification
Application scope:
Industrial water pump、pneumatic、air compressor、hydraulic system、industrial automation |
|
|

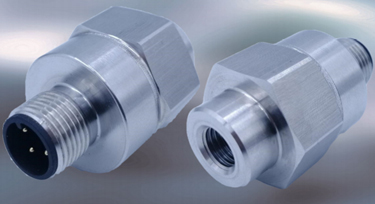

Artemis series
The Artemis series pressure transmitter is designed based on the next generation ceramic sensor technology. They have excellent overload and burst pressure and are packaged in a compact package with all standard analog and digital outputs.
Features:
Ceramic pressure element
best in class overpressure and burst pressure
Pressure range 1 - 50 bar absolute and gauge pressure
4-20 mA, 0-10V, 0-5V, proportional voltage, I2 C, RS485 output
Operating temperature - 20 to 85 ° C
High media compatibility
EMC certification
Application scope:
Industrial water pump、pneumatic equipment、air compressor、hydraulic system、industrial automation equipment

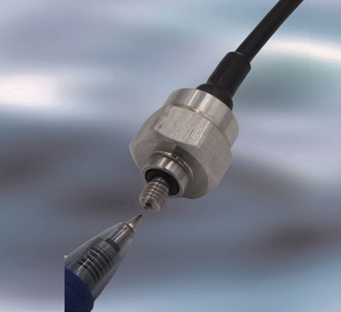

Pico series
Pico series pressure transmitter is specially designed for extremely compact space. They are very small, with a diameter of 16mm and a mounting height of less than 20mm. |
![](images/pro53.jpg) |
|
|
![](images/pro54.jpg) |
Features:
MEMS pressure sensors
Accuracy up to 0.5% FS
pressure range 0.5 - 7 bar
Absolute and gauge pressure
proportional voltage or I2 C output
Operating temperature range - 20 - 85 ° C
EMC certification
Application scope:
Compact / space saving、low pressure、pneumatic equipment、industrial automation |
|
|
|
