Spectrometer
YM-S01 portable spectrometer is easy to carry and easy to use. Through Bluetooth and mobile app application connection, the data after scanning the target will be uploaded to the cloud, and the algorithm will process the data in real time. In a few seconds, the results will appear on the phone. |
|
|
Product Parameters:
|
Spectral Range |
Wavelength Accuracy |
Spectral Resolution |
Hyperspectral pixel size |
IO |
Battery |
Dimensions |
Weight |
400--900nm |
0.04nm |
0.8nm |
85um*85um |
Bluetooth 4.0 |
8h |
60×32×24mm |
38g |
|
Application fields: food quality monitoring, food pesticide residue detection, tobacco authenticity identification, clothing fabric identification and other fields.
|
 |
|
 |

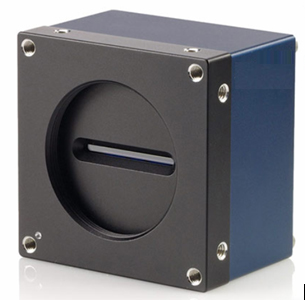

Hyperspectral Camera
YM-SC series snapshot spectral camera is based on CIS image sensor without RGB filter, and uses CMOS technology and process compatible semiconductor substrate (such as silicon, silicon nitride, etc.) to make a layer of micro nano structure super surface filter, through which the spectral information is modulated and encoded regularly, The spectral dimension information and spatial information are captured by the detector, and then the spectral recovery algorithm is superimposed to form hyperspectral cube data.
Compared with other manufacturers the products are obviously superior in size and price. It is the only snapshot spectral imaging scheme with mass production, high precision and low cost. |
|
Product Parameters:
|
|
30W
Spectral camera |
200W
Spectral camera |
800W
Spectral camera |
Spectral range |
400~900nm |
Wavelength accuracy |
0.04nm |
Resolution |
0.8nm |
Hyperspectral pixel size |
85um*85um |
Visible pixel |
30W |
200W |
800W |
Network interface |
RJ45 |
Other interfaces |
USB3.0、1 IO Input、1 IO Output |
|
 |

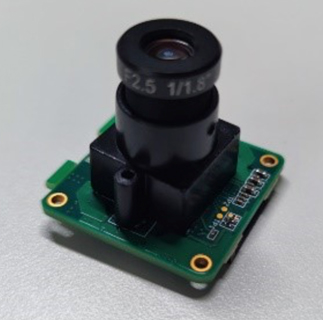

YM-SC series snapshot spectral camera only has 2 ~ 5W ultra-low power consumption, uses industrial Ethernet network port, USB3.0 and other interfaces, and can provide board level camera according to user needs.
Application fields: biopharmaceuticals, smart agriculture, food safety and quality inspection, environmental testing, waste classification, industrial testing, security and other widely used fields.
|
|
|
|
