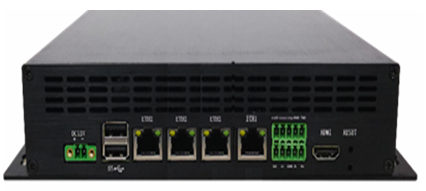

| Industrial Interconnection Controller |
|
 |
Intelligent industrial controller，AI computing power, software worker.
The embedded PIC that meets the industrial requirements can be used in severe industrial environment.
As a core computing platform, it can be used for the connection, control, calculation, management and software of various industrial equipment. It can also be used for AGV fork, robot front loading or modified auto controller and other scenes. |
|
|
Product features:
1) Support ADC conversion interface, 10-12 bit SAR ADC (built-in, shielded).
2) Real time data acquisition and local cache, onboard SSD, capacity ≥ 128GB.
3) 6-core 64 bit arm platform, 4-core A73 and 2-core A53.
4) Support on-site screen display and touch screen operation, with mipi-dsi or EDP TFT LCD interface.
5) Support 1-way HDMI interface to connect external display.
6) Support 2 USB interfaces, convenient for on-site service.
7) Support 4G / 5G / WiFi interfaces.
8) Support 2-way RS232 and 1-way RS485 interface.
9) Support I / O relay and other interfaces.
10) Support Linux / QT, Ubuntu.
11) Support 4 independent Gigabit Ethernet ports.
12) Support for HTTPS and encryption authentication mechanism.
13) Working temperature: - 20 ~ + 70 ℃, no fan design, with radiator.
14) Three proofs, basic anti vibration and drop, with stiffeners. |
|
|
